Analysis Background:

The lifting fixture under study is a frame beam structure composed of profiles and welded plates.

Analysis Objective:

During the design process, the strength and stiffness of the lifting fixture are critical factors that must be considered. Through finite element analysis of the lifting fixture, we aim to understand the stress distribution areas, obtain the stress distribution pattern of the fixture, and ensure the overall structural safety.

Analysis Model:

Figure 1 Finite element grid model

Result:

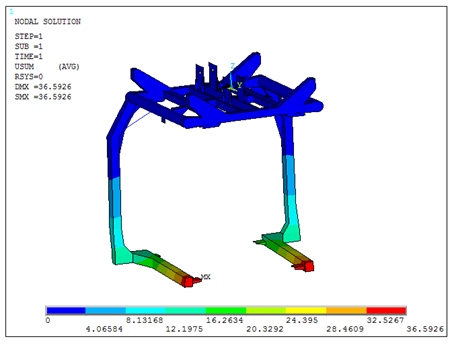

 Figure 2 Structural deformation diagram

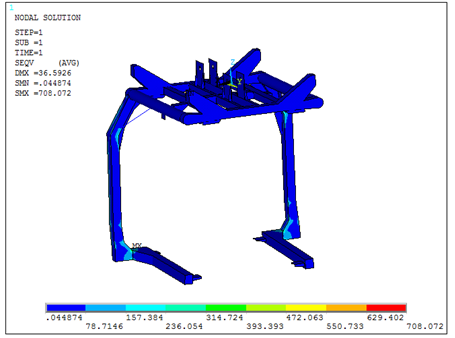

 Figure 3 Structural equivalent force cloud diagram

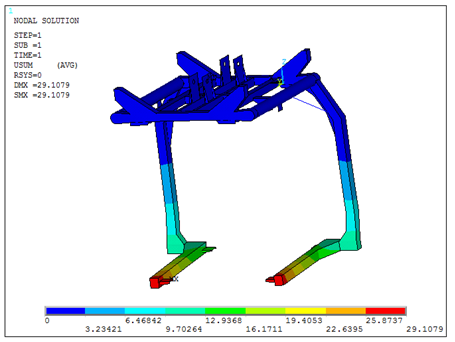

 Figure 4 Structural deformation diagram

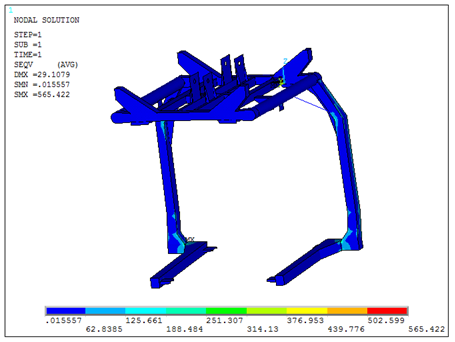

Figure 5 Structural equivalent force cloud diagram
