Mechanical Design of Oil-Gas Separator

Mechanical Design of Oil-Gas Separator

Mechanical Design of Oil-Gas Separator

Analysis Background

When oil from the formation reaches the wellhead of an oil-gas well and then flows along the production vitta or gas gathering pipe, gas-liquid two-phase flow is often formed due to changes in pressure and temperature conditions.

Analysis Objective

To meet the needs of oil-gas well product metering, mineral processing, storage, and pipeline (or other transportation methods) transportation, it is necessary to separate the formed gas-liquid two phases.

Model

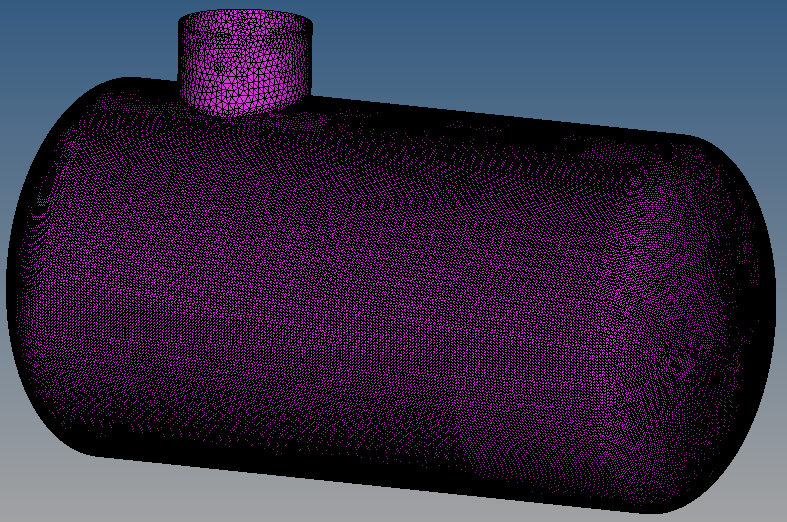

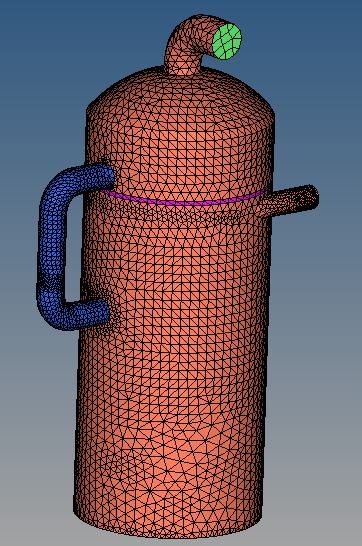

Figure 1: Finite Element Analysis and Mesh Distribution of Oil-Gas Separator

Results

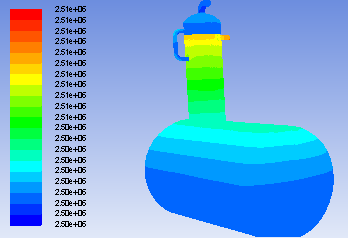

Figure 2: Pressure Distribution Contour

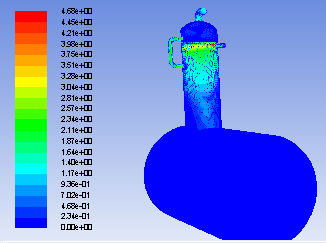

Figure 3: Velocity Vector Distribution Diagram

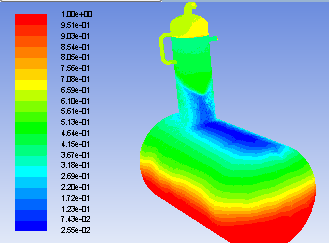

Figure 4: Liquid Phase Volume Distribution Contour (Velocity Inlet)

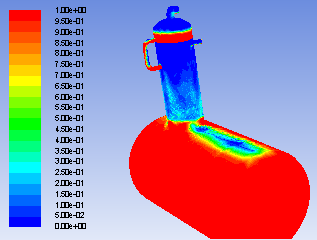

Figure 5: Liquid Phase Volume Distribution Contour (Pressure Inlet)

Figure 6: Gas Phase Volume Distribution Contour (Velocity Inlet)

Figure 7: Gas Phase Volume Distribution Contour (Pressure Inlet)
